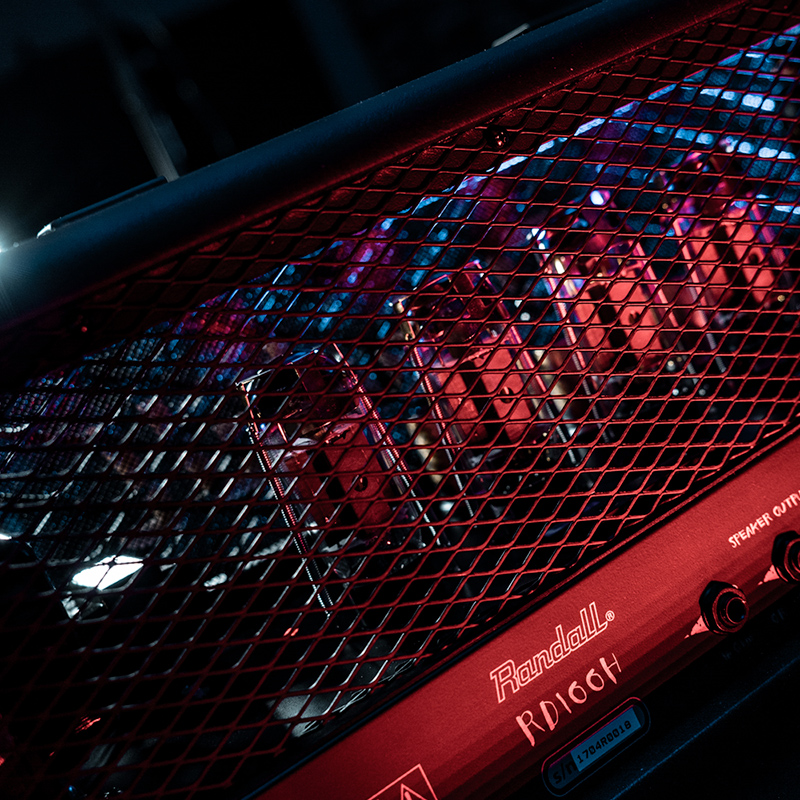

RD100H
From 1 Watt to 100 Watts the RD/Diavlo Series is direct and to the point – GAIN & TONE: that’s it, that’s what it’s about. Void of useless features, we put our focus into horsepower under the hood where it counts. The RD100H is a 3 Channel 100w all tube (12AX7/6L6) head with Tube Boost Mode, Speaker emulated XLR direct output with ground lift, Class A Discrete instrument level FX loop, and a 4 function footswitch.
Specifications
Electronics
Controls Master Volume, 3 x Volume, 3 x Gain, Bass, Middle, Treble, Presence, Boost
Wattage 100 Watts
Channels 3
Fx Gate Reverb Class A Discrete Instrument Level Loop
Tube Type 12AX7/6L6
Inputs 1 x Standard Guitar Input, FX Return, Footswitch
Outputs 3 x Speaker Jacks, XLR Speaker Emulator, FX Send
Other
Additional Info 12AX7 and 6L6 Tubes
General
Footswitch 3 Channels + Boost (RF4CHB)
Dimensions 27.00 x 9.45 x 10.04 inches
Weight Lbs 44.09 lbs
