RD45H
The RD45H Tube Amp Head is a 2-channel, 45-watt all-tube (12AX7 preamp with 6L6 or optional EL34 power tubes) high-gain amp head featuring a dedicated Boost mode, shared EQ with Presence control, and Class A discrete instrument-level effects loop. Professional connectivity includes a speaker-emulated XLR direct output, multiple speaker outputs with selectable 16/8/4-ohm impedance, and a 2-function footswitch is included.
Specifications
Electronics

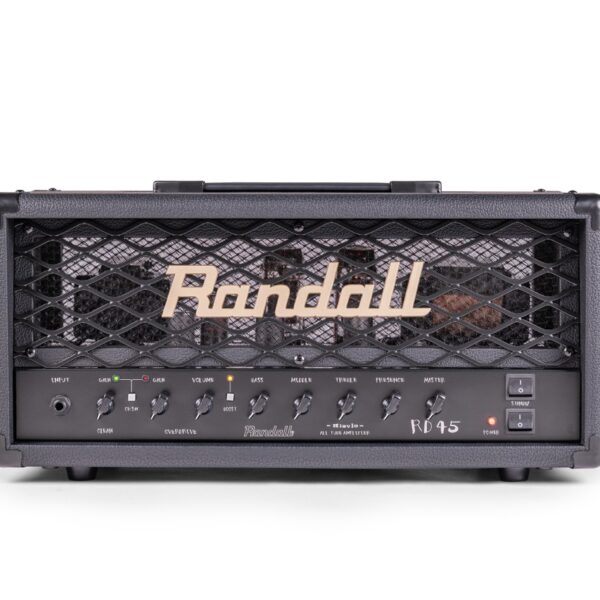

Controls Master Volume, 2 x Channel Gain, 1 x shared Channel Volume, Bass, Middle, Treble, Presence
Wattage 45 Watts
Channels 2 + Boost
Impedance 16, 8 or 4 Ohm
Fx Gate Reverb Class A Discrete Instrument Level Loop
Tube Type 12AX7/6L6
Inputs 1 x Standard Guitar Input, FX Return, Footswitch

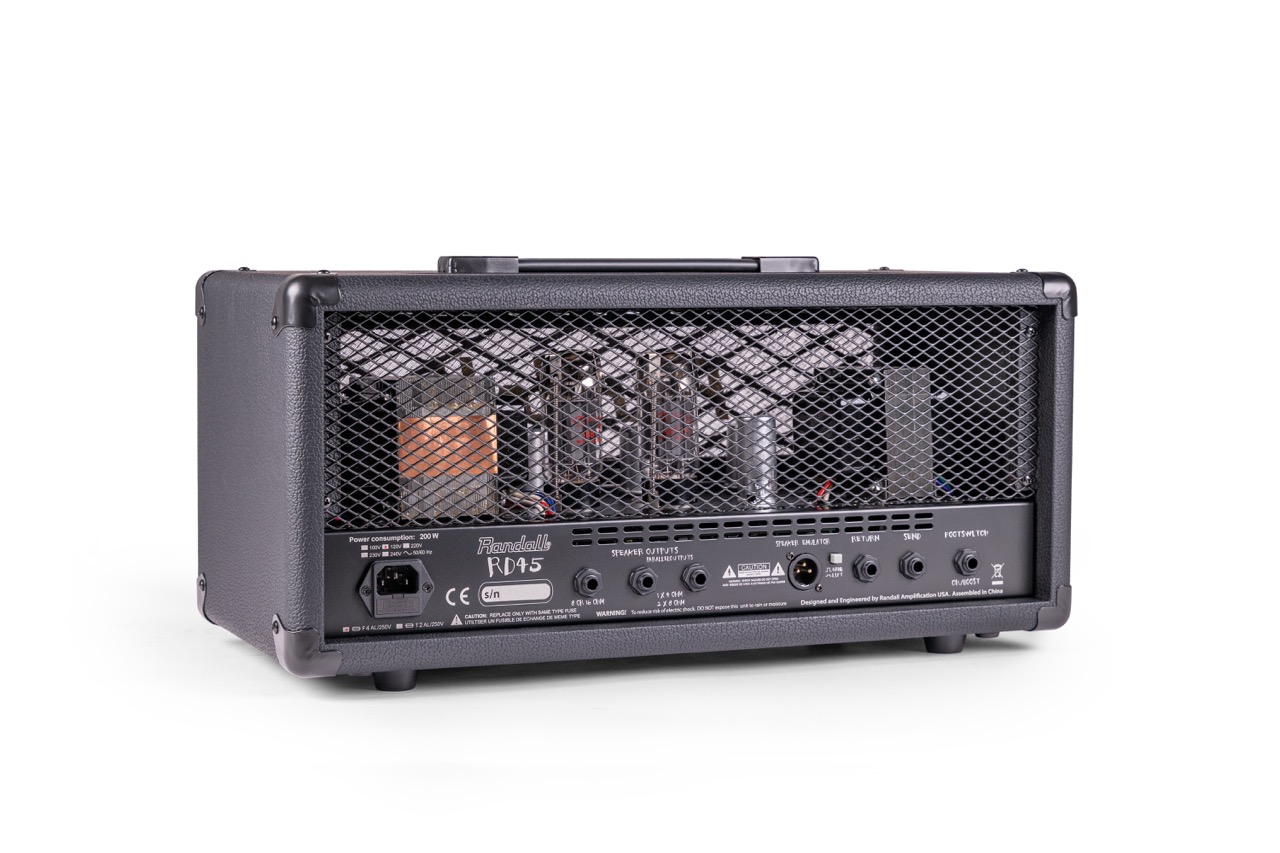

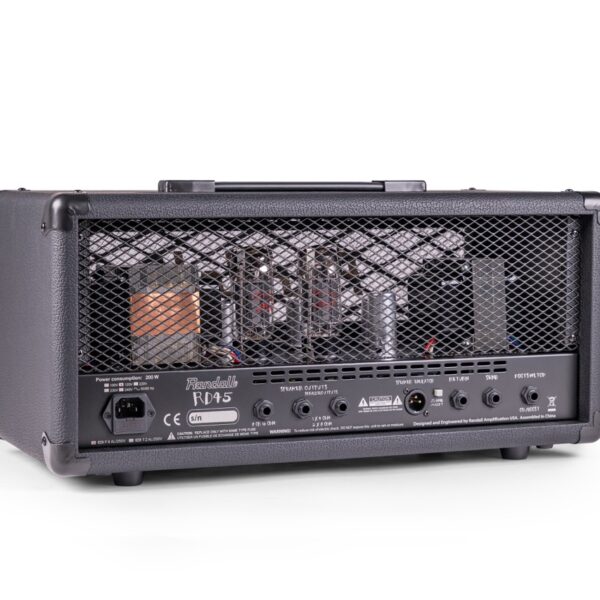

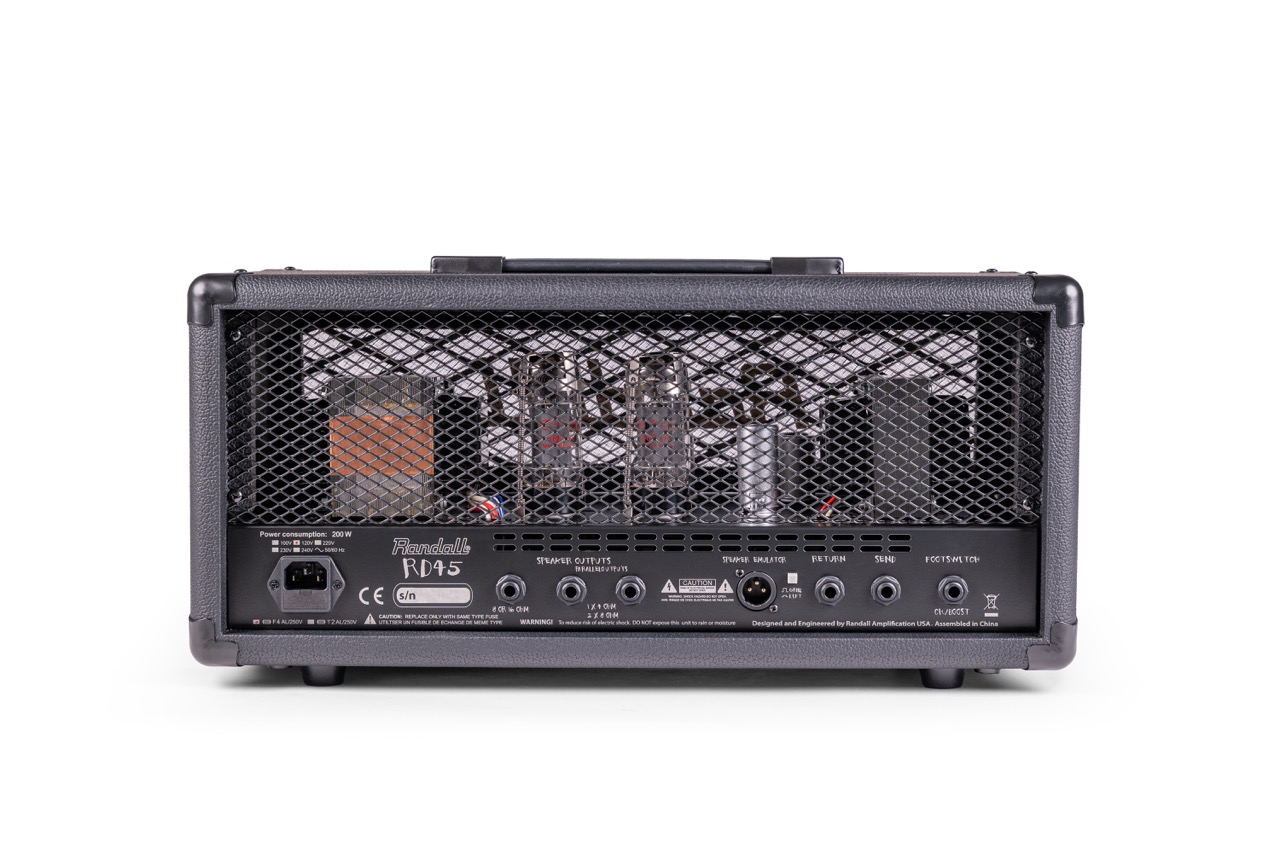

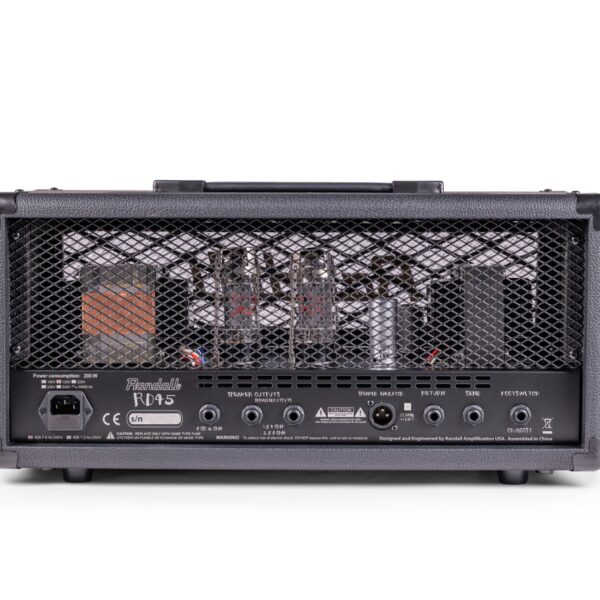

Outputs 3 x Speaker Jacks, XLR Speaker Emulator, FX Send
General

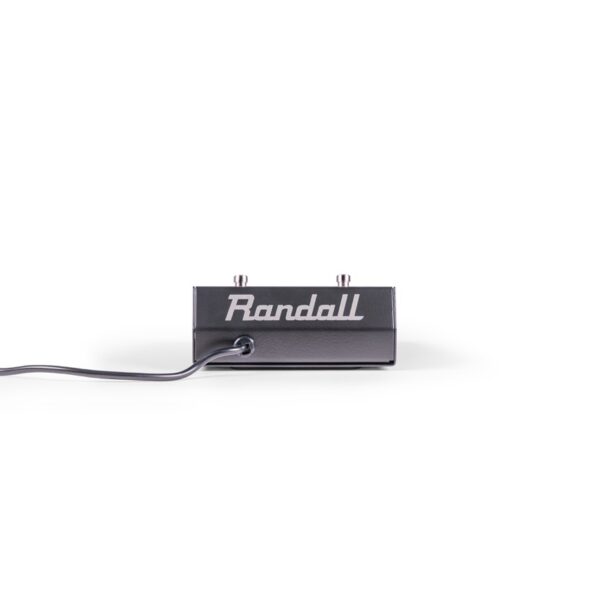

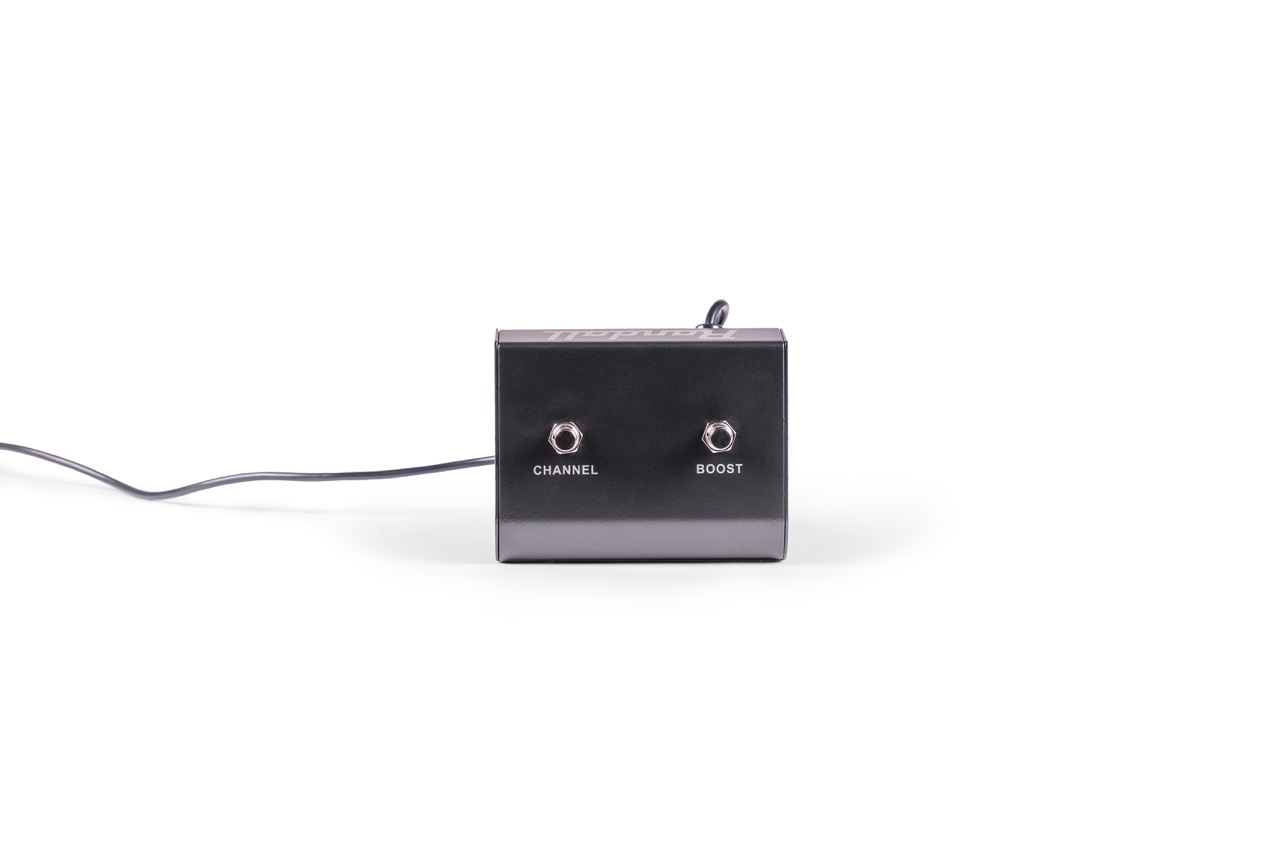

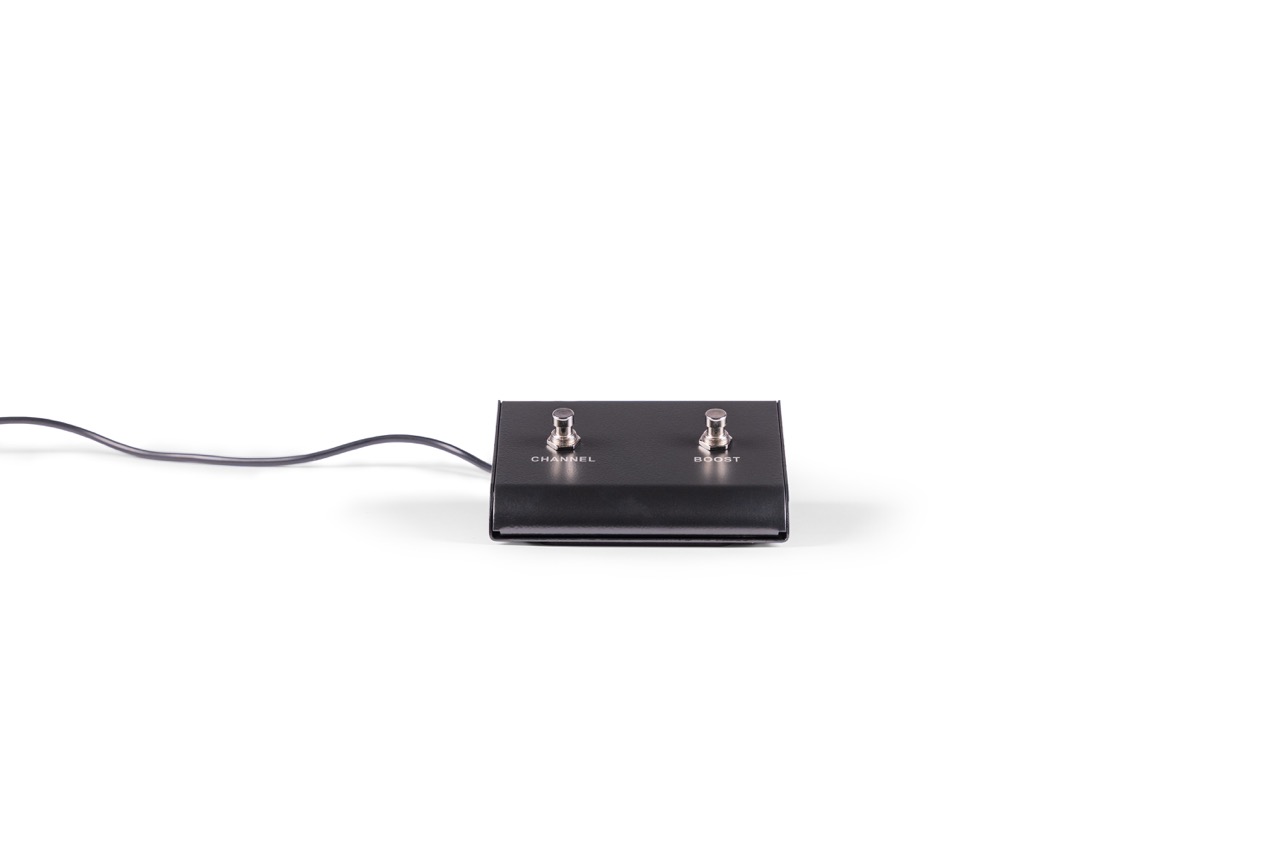

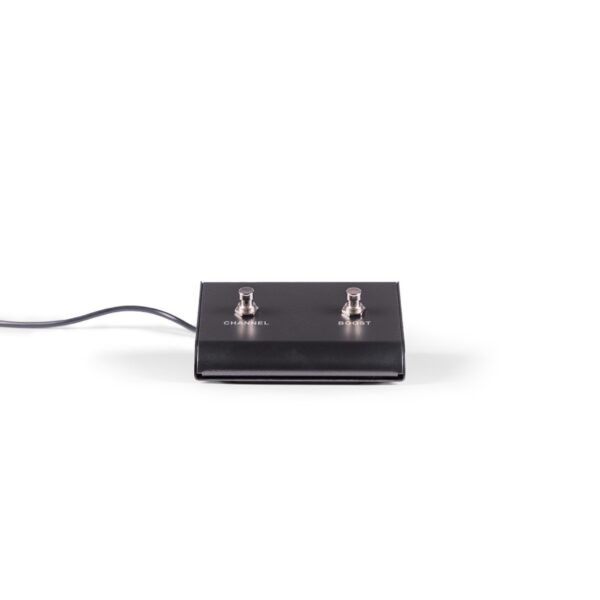

Footswitch 2 Channels and Boost (RF2T2C)
Dimensions 19.69 x 8.66 x 10.04 inches
Weight Lbs 30.86 lbs
